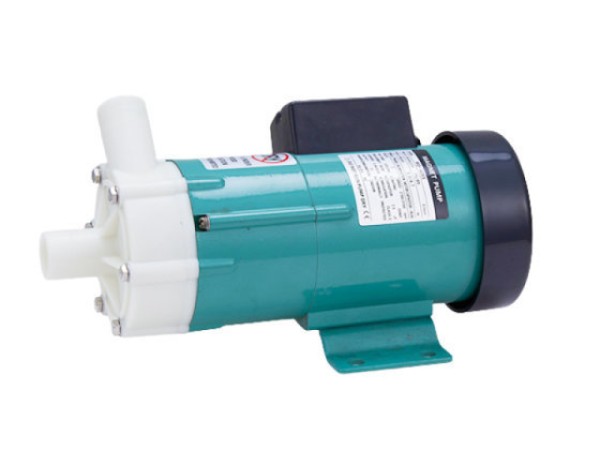

MD-40RZ
MD-40RZ
کد کالا: AJ70012
دسته بندی:
پمپ مگنت
مشخصات فنی
| Tyoe | Tube interface | Spiral interface | Max. Capacity L/min | Max. head m | Standard outlet m-L/min | Temperature | Specific weight | Motor | ||||
| Inlet | Outlet | Outlet-inlet (inch) | Tube | Output W | Input w | Phase | ||||||
| MD-30R | 20mm | 20mm | G3M | 16mm | 32 | 3.8 | 2.5-16 | 0-80 | 1.3 | 45 | 60 | 1 |
| MD-30R(M) | 20mm | 20mm | G3M | 16mm | 32 | 3.8 | 2.5-16 | 0-80 | 1.3 | 45 | 60 | 1 |
| MD-30RX | 26mm | 26mm | G1 | 20mm | 62 | 2.9 | 2-32 | 0-75 | 1.1 | 45 | 70 | 1 |
| MD-30RZ | 18mm | 18mm | G3M | 13mm | 15 | 8 | 6-10 | 0-80 | 1.0 | 45 | 70 | 1 |
| MD-40R | 20mm | 20mm | G3M | 16mm | 45 | 4.6 | 4-22 | 0-80 | 1.1 | 65 | 90 | 1 |
| MD-40R(M) | 20mm | 20mm | G3M | 16mm | 45 | 4.6 | 4-22 | 0-80 | 1.1 | 65 | 90 | 1 |
| MD-40RX(m) | 26mm | 26mm | G1 | 20mm | 75 | 3.3 | 2-47 | 0-80 | 1.1 | 65 | 85 | 1 |
| MD-40RZ | 22mm | 22mm | G 3/4 | 16mm | 12 | 11.5 | 10-8 | 0-80 | 1.1 | 65 | 110 | 1 |
| MD-55R | 26mm | 26mm | G1 | 20mm | 60 | 5.6 | 4-30 | 0-75 | 1.2 | 90 | 130 | 1 |
| MD-55R(M) | 26mm | 26mm | G1 | 20mm | 60 | 5.6 | 4-30 | 0-80 | 1.2 | 90 | 130 | 1 |
